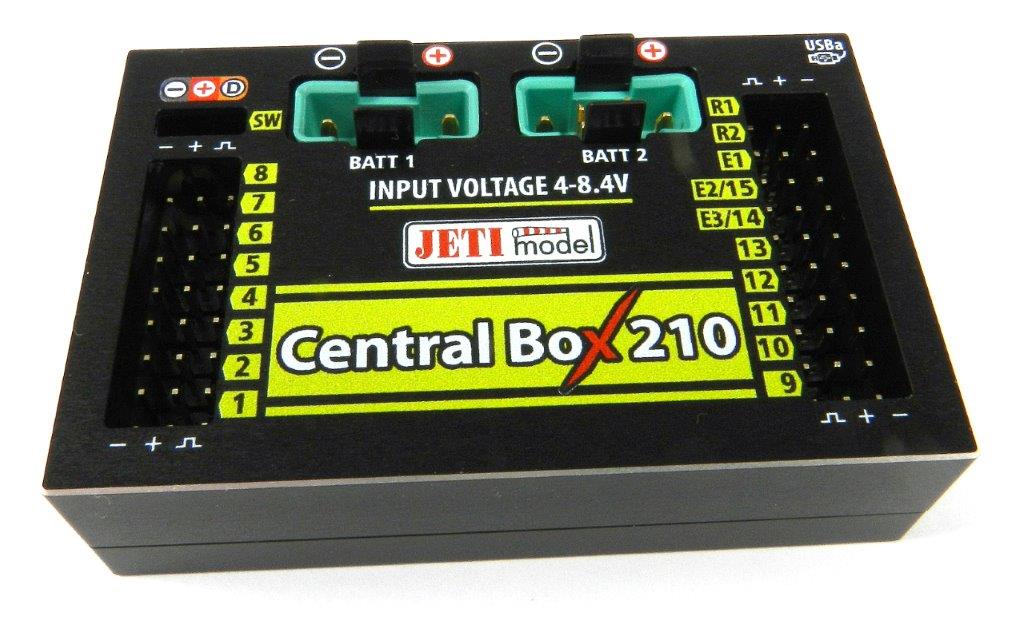

JETI Central Box 210

The new product from JETI model is coming! After successful testing here is official specification of an updated version of very popular Central Box 200.

The Central Box 210 is a switchboard designed for the complete management of servos in a model.
The Central Box can manage two batteries and fully supports the JETI EX telemetry system. Up to three
receivers with serial output can be connected to the Central Box. With JETI DC/DS transmitter, the full
potential of the Central Box can be used, such as an easy way to configure the Central Box, EX telemetry
and DITEX servos telemetry.Central Box 210 supports up to 15 servo outputs, two battery inputs and
incorporates possibility to connect an RC or magnetic switch.

Attributes
– Support of DITEX telemetry servos
– Possibility to connect up to 3 receivers with serial interface (EX-Bus, PPM)
– Built-in Expander function for up to 3 sensors
– Input for magnetic switch or RC switch
– Two MPX battery input connectors
– 100Hz mode of servo outputs (10ms period)
– Supports EX telemetry (voltage, current, capacity, and temperature measurement, overload indication, …)
– Easy settings changes via DC/DS transmitter
– Firmware updates by user
– Suitable for use with high voltage (HV) servos
– Compact size for easy installation
– Aluminum Case for Extra Cooling and Protection

Weight [g]     59
Dimensions [mm]     66 x 42 x 18
Sustained current [A]     20
Peak current (2s) [A]     90
Number of channels     15
Telemetry     Yes
Operational temperature [°C]     -20 … 75
Compatible protocols     EX Bus, PPM
Supply Voltage [V]     4 … 14
Satellite receiver support     Yes
Batteries NiXX     4 … 10
Batteries LiXX     2 … 3
Idle current [ľA]     180
Number of battery inputs     2
Voltage stabilization     No
